一、 气体绝缘输电线路
1.Gas insulated Transmission Line (GIL) product introduction
气体绝缘输电线路。这是一种特殊的输电技术，其核心在于使用SF6气体作为绝缘介质，将电能通过一根密封的管道进行传输。气体绝缘输电线路技术最初是为了解决高压电缆在城市中铺设的问题而发展起来的，因为其具有高可靠性、低噪音、低维护等优点，因此被广泛应用于高压、超高压、特高压输电设施。
Gas insulated transmission lines. This is a special power transmission technology, the core of which is the use of SF6 gas as an insulating medium, the electricity is transmitted through a sealed pipe. Gas insulated transmission line technology was originally developed to solve the problem of high-voltage cable laying in the city, because of its high reliability, low noise, low maintenance and other advantages, so it is widely used in high-voltage, ultra-high voltage, UHV transmission facilities.
表1 公司全电压等级气体绝缘输电线路产品参数表
（Table 1：GIL product parameter table of the company's full voltage level）
电压等级Voltage level | 126kV | 252kV | 363kV | 550kV | 1100kV |
导体外径/壁厚(mm)Conductor outer diameter/wall thickness(mm) | 90 | 130 | 130 | 180 | 200 |
壳体外径/壁厚(mm)Shell outer diameter/wall thickness (mm) | 416 | 330 | 376 | 516 | 900 |
频率(Hz)Frequency (Hz) | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
额定工作压力（MPa)Rated working pressure (MPa) | 0.45 | 0.45 | 0.45 | 0.45 | 0.45 |
额定电流(A)Rated current (A) | 3150 | 4000 | 5000 | 6300 | 6300 |
工频耐压(kV，1min)Power frequency withstand voltage (kV, 1min) | 230 | 460 | 510 | 740 | 1100 |
雷电冲击电压(kV)Lightning impulse voltage (kV) | 550 | 1050 | 1175 | 1675 | 2400 |
操作冲击电压(kV)Operating impulse voltage (kV) | - | - | 950 | 1300 | 1800 |
短路电流(kA，3s)Short circuit current (kA, 3s) | 31.5 | 63 | 63 | 63 | 63 |
气体年泄露率Annual leakage rate of gas | ≤0.1% | ≤0.1% | ≤0.1% | ≤0.1% | ≤0.1% |
无气体时母线重量(kg/m)Bus weight without gas (kg/m) | 51.5 | 33.5 | 39.6 | 51.3 | 94.6 |
气体重量（kg/m)Gas weight (kg/m) | 3.96 | 3.27 | 3.95 | 7.66 | 24.65 |

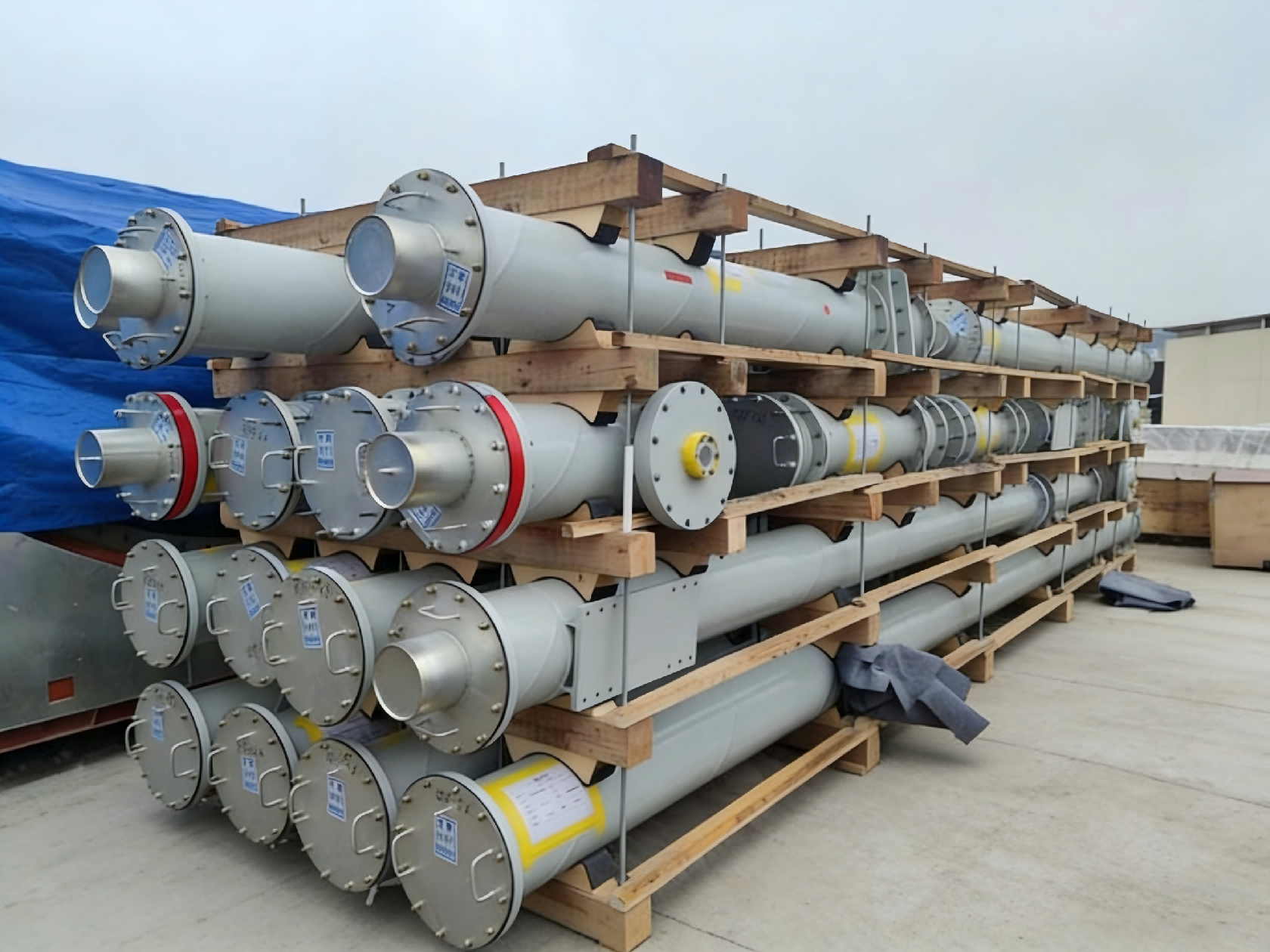

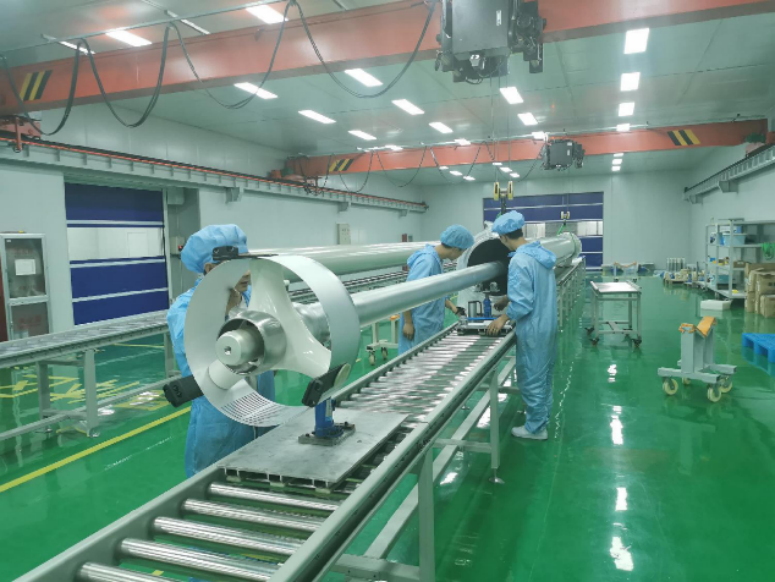

图1我公司正在生产的550kV 产品
（Pic 1:550kV GIL products being produced by our company）

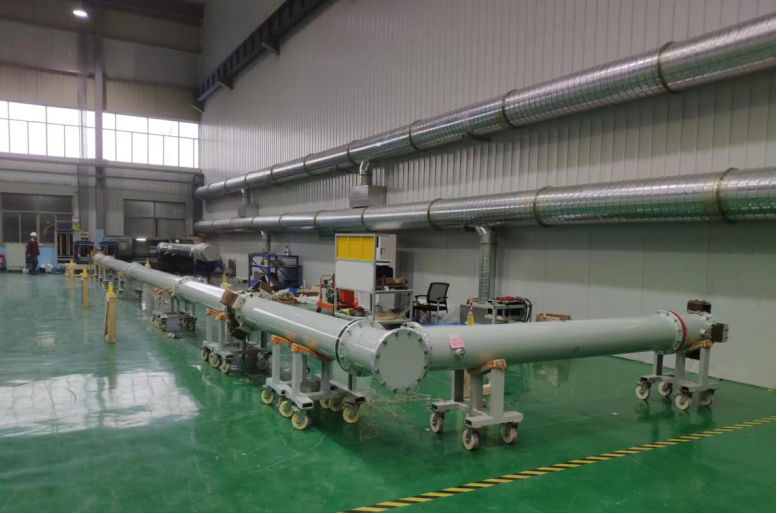

图2 我公司生产的产品正在进行整机试验
（Pic 2：GIL product produced by our company is undergoing electrification test of the whole machine）
我公司在绝缘计算、机械强度计算、温升计算等方面具有丰富的经验。
Our company has rich experience in insulation calculation, mechanical strength calculation, temperature rise calculation and so on.
我公司采用Autopipe软件对工程设计进行气体绝缘输电线路支撑部位承受载荷计算、管道应力计算，重点考虑了气压盲板力、管道质量、热膨胀力、风压及地震载荷的因素，考虑最严苛的工况，对气体绝缘输电线路全管线建模、计算。
Autopipe software was used by our company to calculate the load on GIL supporting parts and pipeline stress in the engineering design, focusing on the factors of air pressure blind plate force, pipeline quality, thermal expansion force, wind pressure and seismic load. Considering the most severe working conditions, the entire GIL pipeline was modeled and calculated.
表2 工程柔性计算时的载荷因素
（Table 2：Load factors in engineering flexibility calculation）
载荷种类 Type of load | 长期载荷 Long-term load | 短期载荷 Short-term load | 动态载荷 Dynamic load | 基础上产生的轴向力和剪切力等 On the basis of axial force and shear force | |
1 | 自重dead load | ○ | |||
2 | 地震载荷Seismic load | ○ | ○ | ||
3 | 气体压力载荷 （附带波纹管弹力）Gas pressure load (with bellows elastic) | ○ | ○ | ||
4 | 热伸缩载荷Thermal expansion load | ○ | ○ | ||
5 | 风压载荷Wind pressure load | ○ | ○ | ||

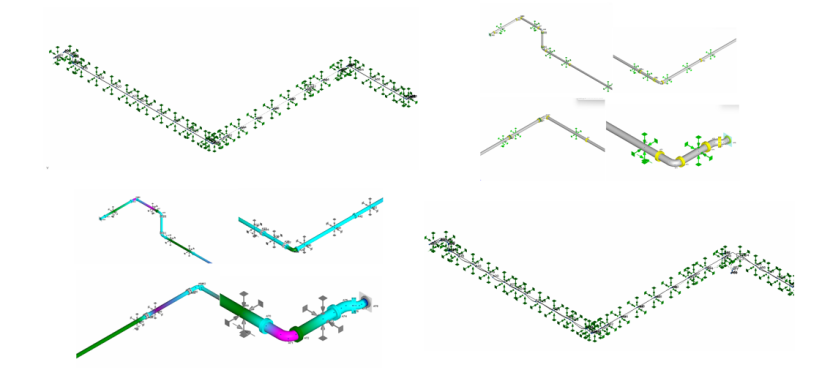

图4 工程柔性计算后的结果展示
（Pic 4：Shows the results of engineering flexibility calculation）
我公司已经取得了1100kV、 550kV、220kV产品型式试验报告，相关产品通过了权威部门的鉴定，其中防护等级IP68、年漏气率≤0.01%，通过了苛刻耐盐雾试验，相关参数高于国家、行业标准。伸缩节、绝缘件的试验标准参照特高压标准，均顺利通过试验。同时我公司也形成了气体绝缘输电线路产品相关专利30余项。
Our company has obtained 1100kV GIL, 550kV GIL, 220kV GIL type test reports, related products have passed the identification of authoritative departments, including protection level IP68, annual gas leakage rate ≤0.01%, passed the harsh salt spray resistance test, the relevant parameters are higher than the national and industry standards. The test standards of expansion joints and insulation parts refer to UHV standards, and they have successfully passed the test. At the same time, our company has also formed more than 30 patents related to GIL products.

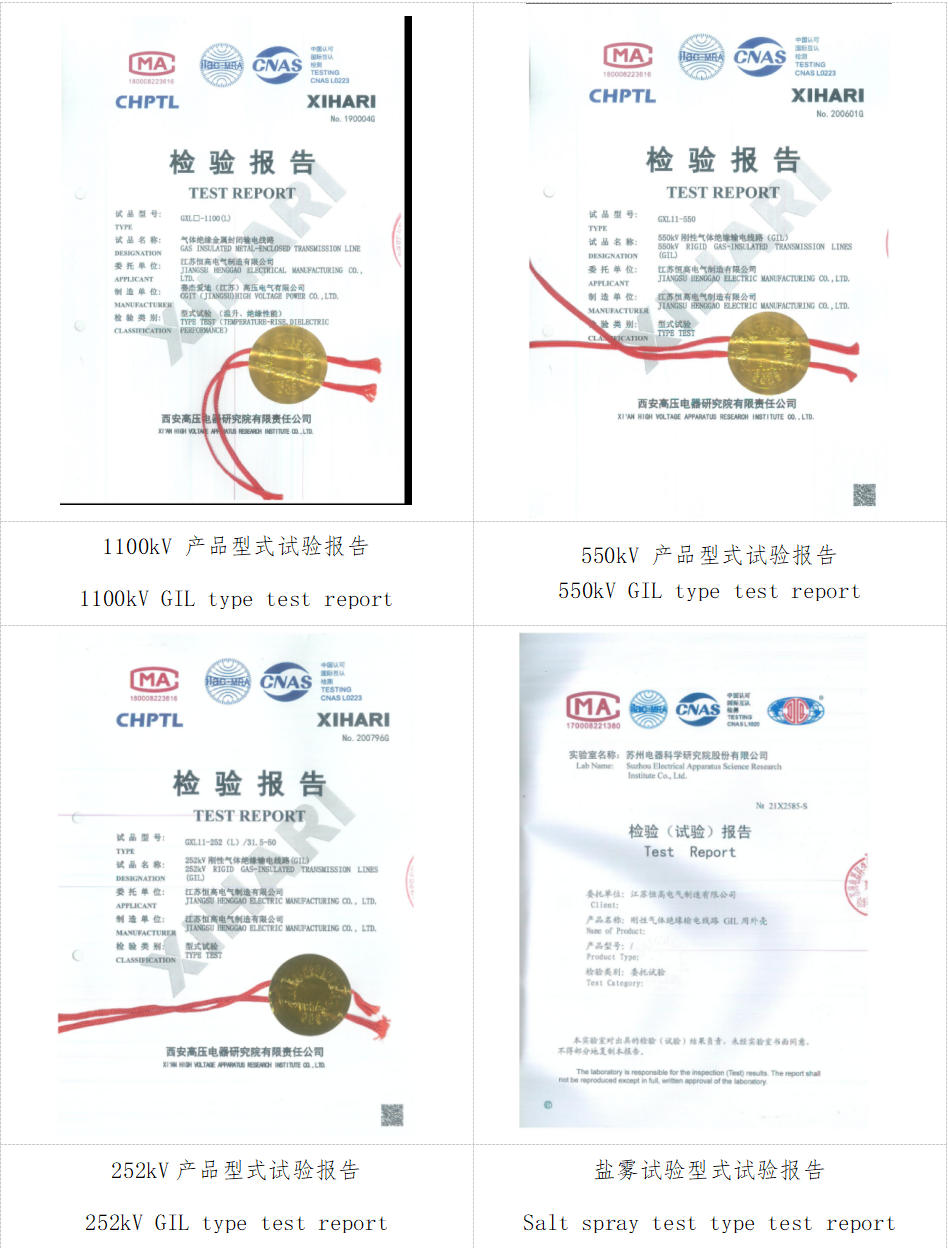

表3 我公司各电压等级气体绝缘输电线路产品型式试验报告
（Table 3：Type test report of GIL products of various voltage levels of our company）

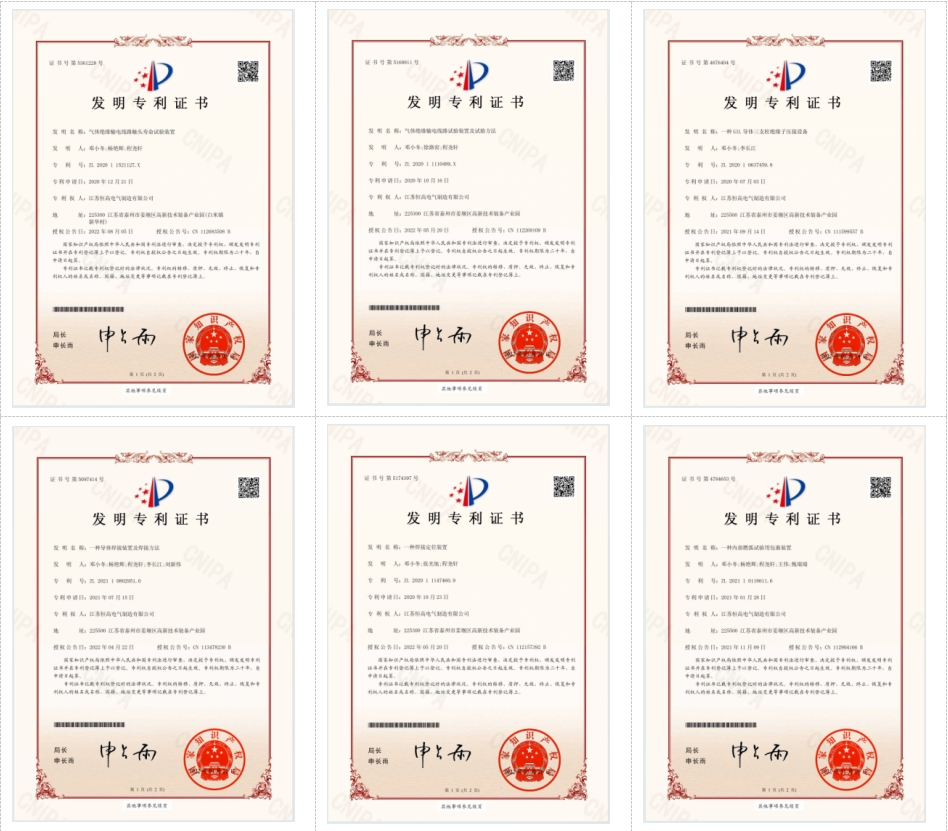

表4 我公司部分发明专利证书展示
（Table 4：Display of patent certificates for some inventions of our company）
我公司的气体绝缘输电线路产品广泛应用于国内外多个输变电工程，典型工程应用如下：
Our gas insulated transmission line products are widely used in many power transmission and transformation projects at home and abroad, typical engineering applications are as follows:

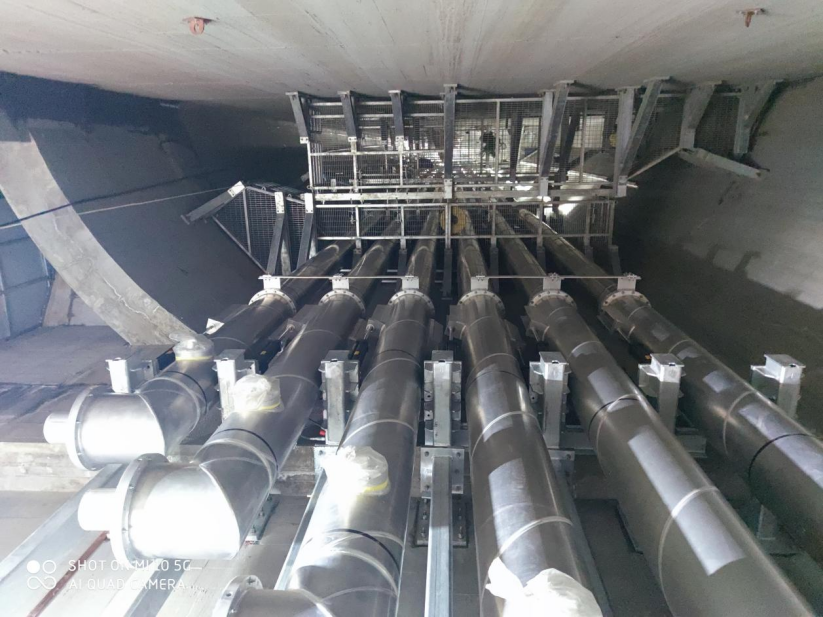

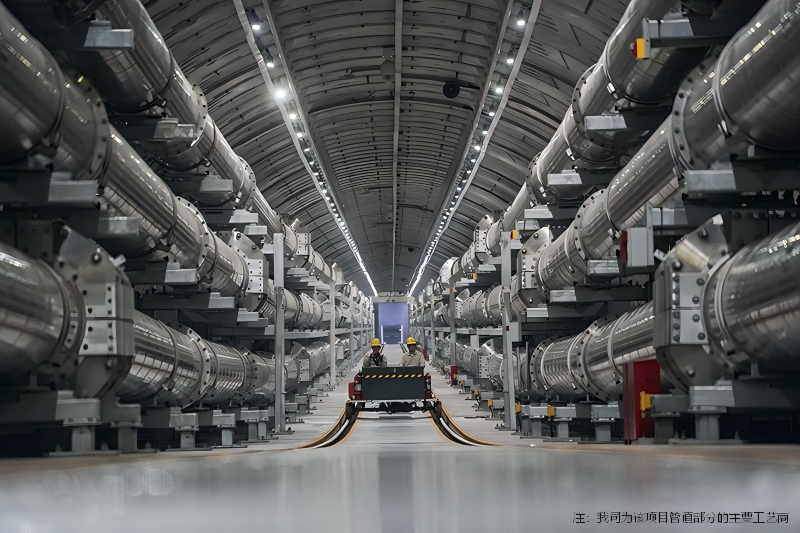

苏通跨江通道1100kV 现场
Pic 5：Sutong cross-river channel 1100kV GIL site

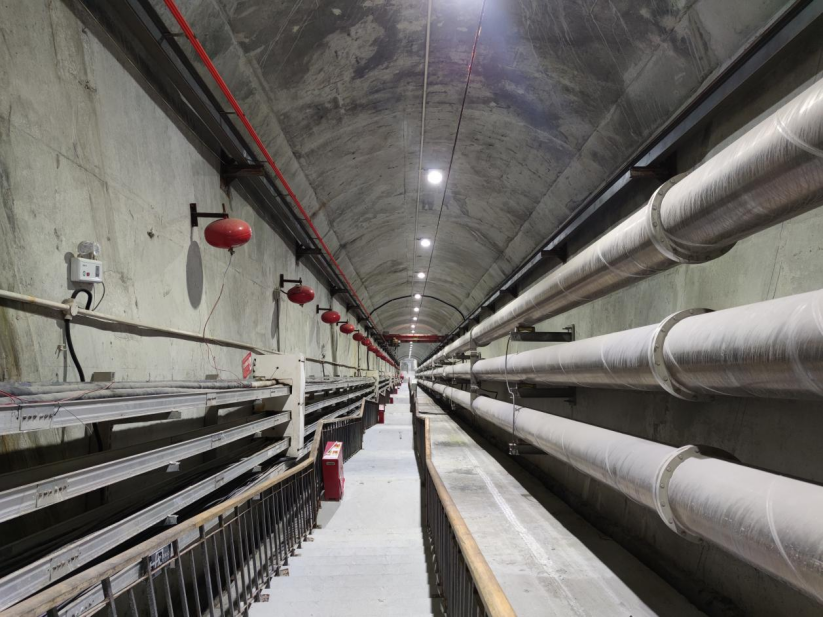

图6 某抽水蓄能项目550kV 现场
Pic 6：550kV GIL site of a pumped storage project
图7 某水电站550kV现场
Pic 7：550kV GIL site of a hydropower station

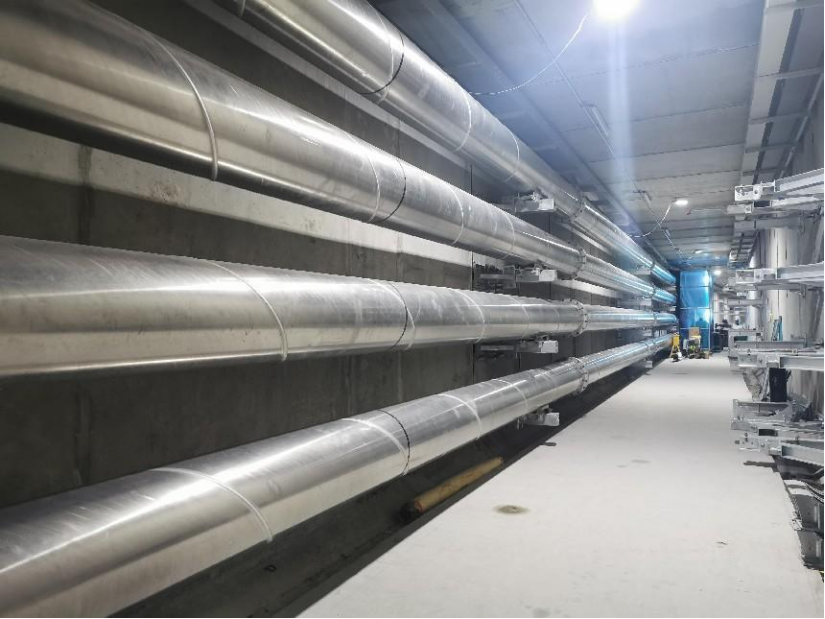

图8 某城市管廊中的550kV 现场
Pic 8：Site of 550kV GIL in a city pipe corridor

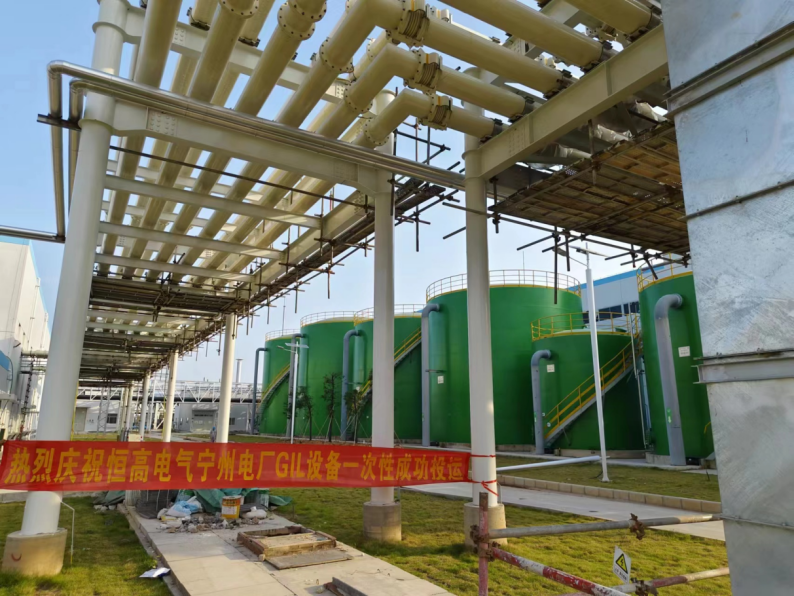

图9 东莞宁州电厂220kV 现场
Pic 9：220kV GIL site of Dongguan Ningzhou Power Plant

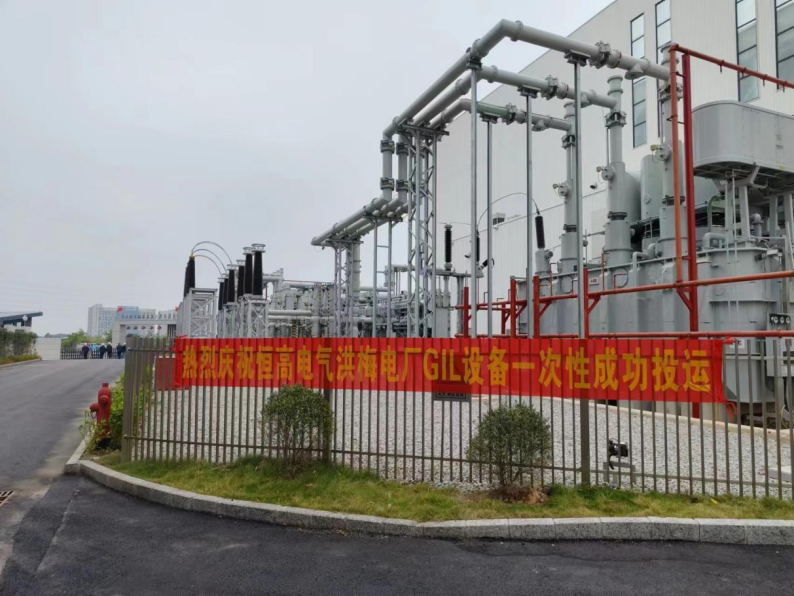

图10 东莞洪梅电厂220kV 现场
Pic 10：220kV GIL site of Dongguan Hongmei Power Plant
